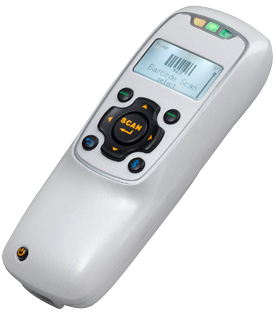

E-Catalog > เครื่องอ่านบาร์โค้ด (Barcode Scanner) > เครื่องอ่านบาร์โค้ด (Barcode Scanner) Barcode Reader and Data Collector PH-390 (MS3390)

Product Description

• Compact size,portable design .
• Highly freedom provided by efficient Bluetooth communication technology .
• Suitable to operate in diverse working environment .
• Light-weight design contributes to excellent mobility .
• Customization decode resolution model of 5mil or 3mil .
• Decode all major 1D barcode symbologies including GS1 DataBar .
• High performance scan rate at 100 scans/sec .
• Intelligent barcode sorting technology with high capacity storage capacity .
• Support multi-line screen display with backlight .
• Easy firmware upgrade .
• Flexible software customizatio

Specifications

Description
Laser source：    650nm laser diode
Decoding rate：    100 ± 10 time/sec
Scanning angle：    ±60°, ±65°, ±42°(Skew, Pitch, Roll)
Decode capability：    All major 1D barcode symbologies including Gs1 DataBar variants
RF module：    Bluetooth V2.0+EDR, class II
Working range：    10 meters
Key&trigger：    1 million presses
Radio Link：    430.5~432.0MHz,433.05~434.79MHz with adaptive frequency hopping
Interface：    USB Keyboard, USB Drive
Indicator：    Beeper, LED, LCD
Operating mode：    Handheld
Decoding depth& Max. resolution    Long-range series5mil：35-160mm10mil：20-320mm15mil：25-440mm20mil：30-565mm
30mil：40-740mm

55mil：75-985mm

High-density series3mil：45-90mm5mil：22-130mm10mil：12-225mm15mil：20-305mm
20mil：25-395mm

55mil：80-730mm

Physical
Dimensions：    110(H)*43(W)*25(D)mm
Weight：    87g
Display：    LCD Monochrome display (128 * 64)
Case material：    ABS
Power
Operating Current：    12mA (standby)；150mA (scanning)；180mA(transmitting)
Standby time：    Over 4 days
Operating time：    6 hours, read
Regulatory
Safety Approve：    EN60825-1,Class 1,EN 55022,EN 55024,EN60950-1,IP52Multiple 1.2m(3.9ft) drops tp concrete
Environmental
Temperature：    0° to 50°C, Operating; -40° to 60°C, Storage
Humidity：    5% to 95% (non-condensing)
